Funeral home design - ID 19701

Plan Specifications

  • 1 story

  • 7 baths

  • 668 sq m

  • Length 30m

  • Width 33m

$1,378.80

To make a purchase using mobile money or by bank transfer select Direct Pay Online (Alternative Method) during checkout.

Plan Description

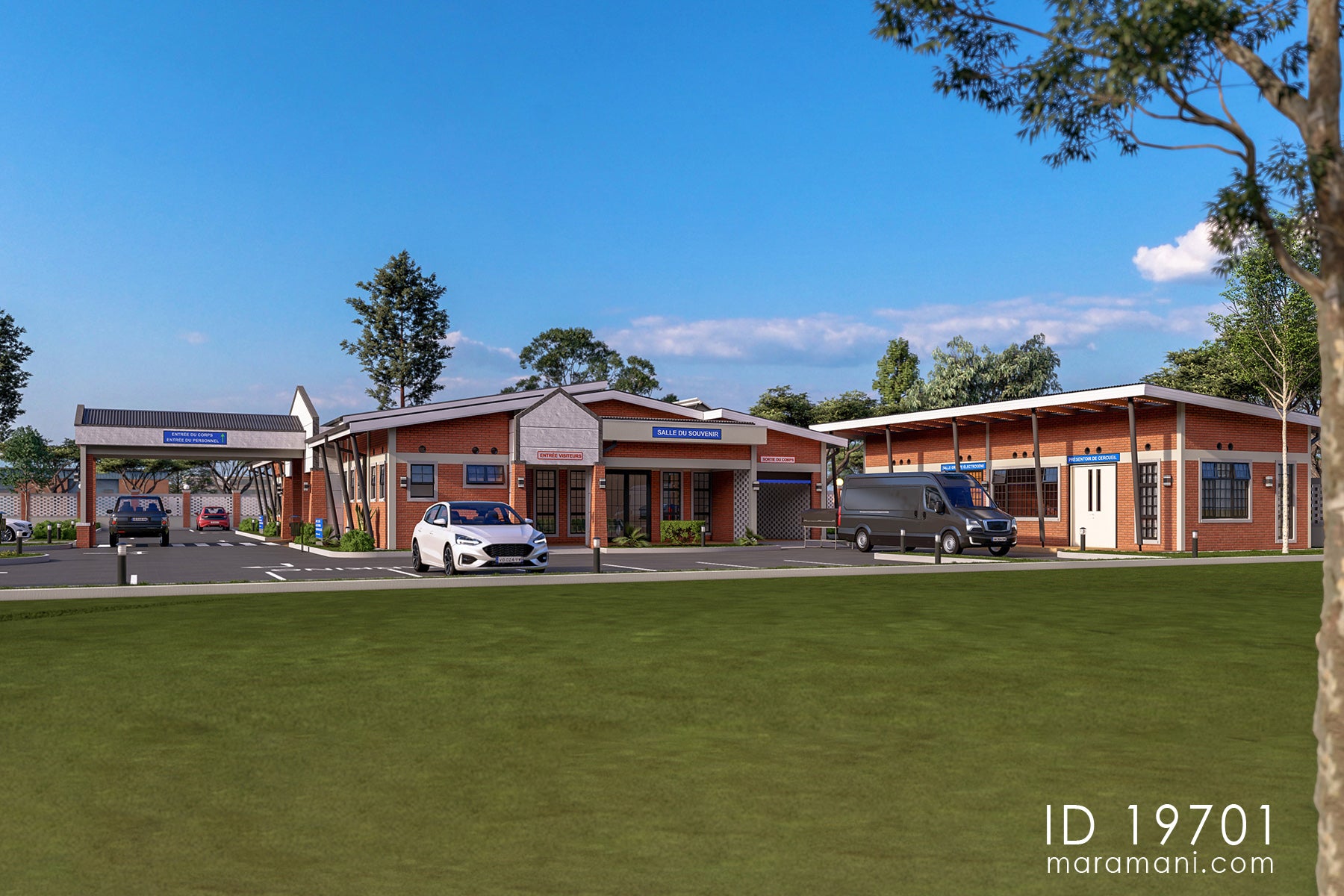

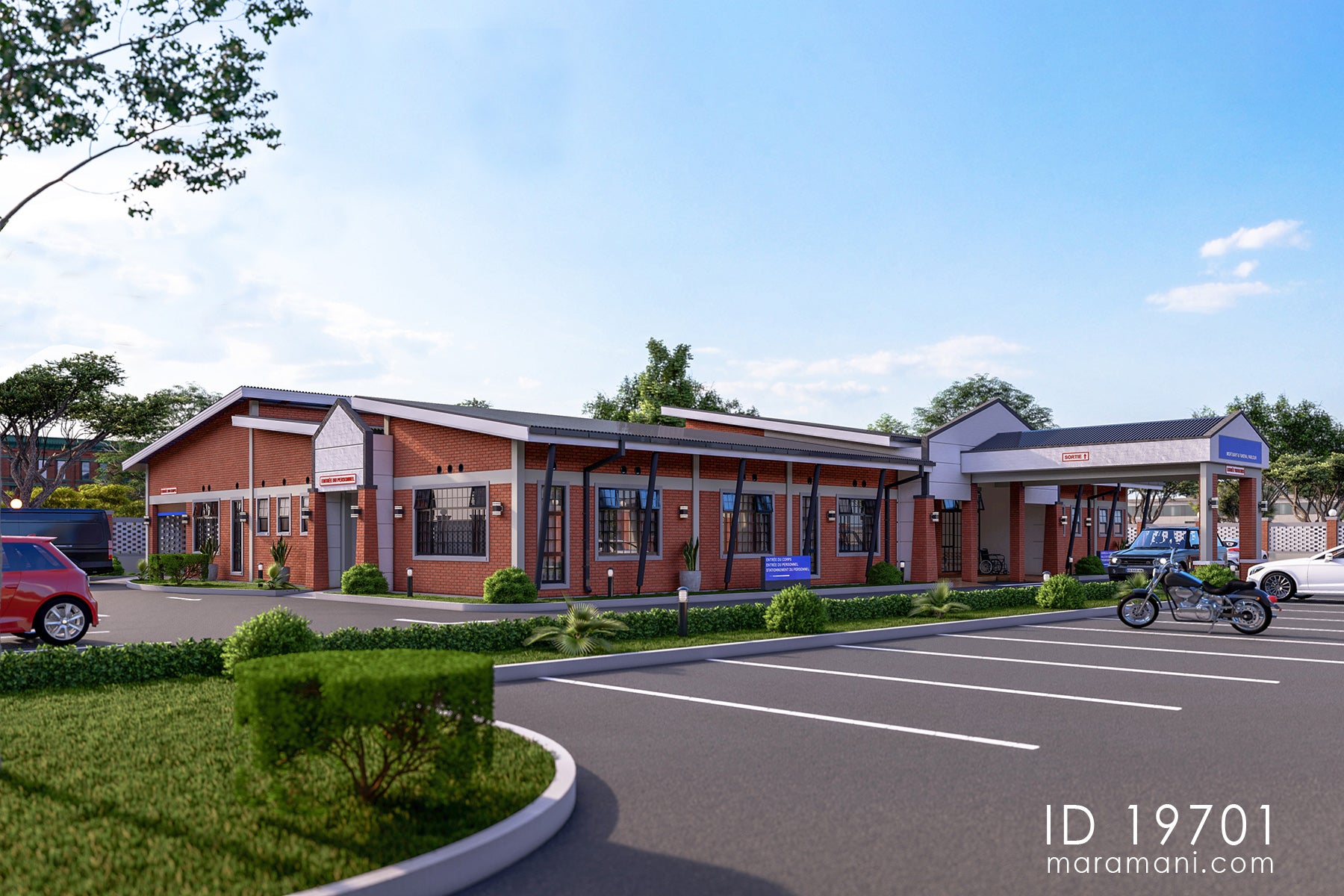

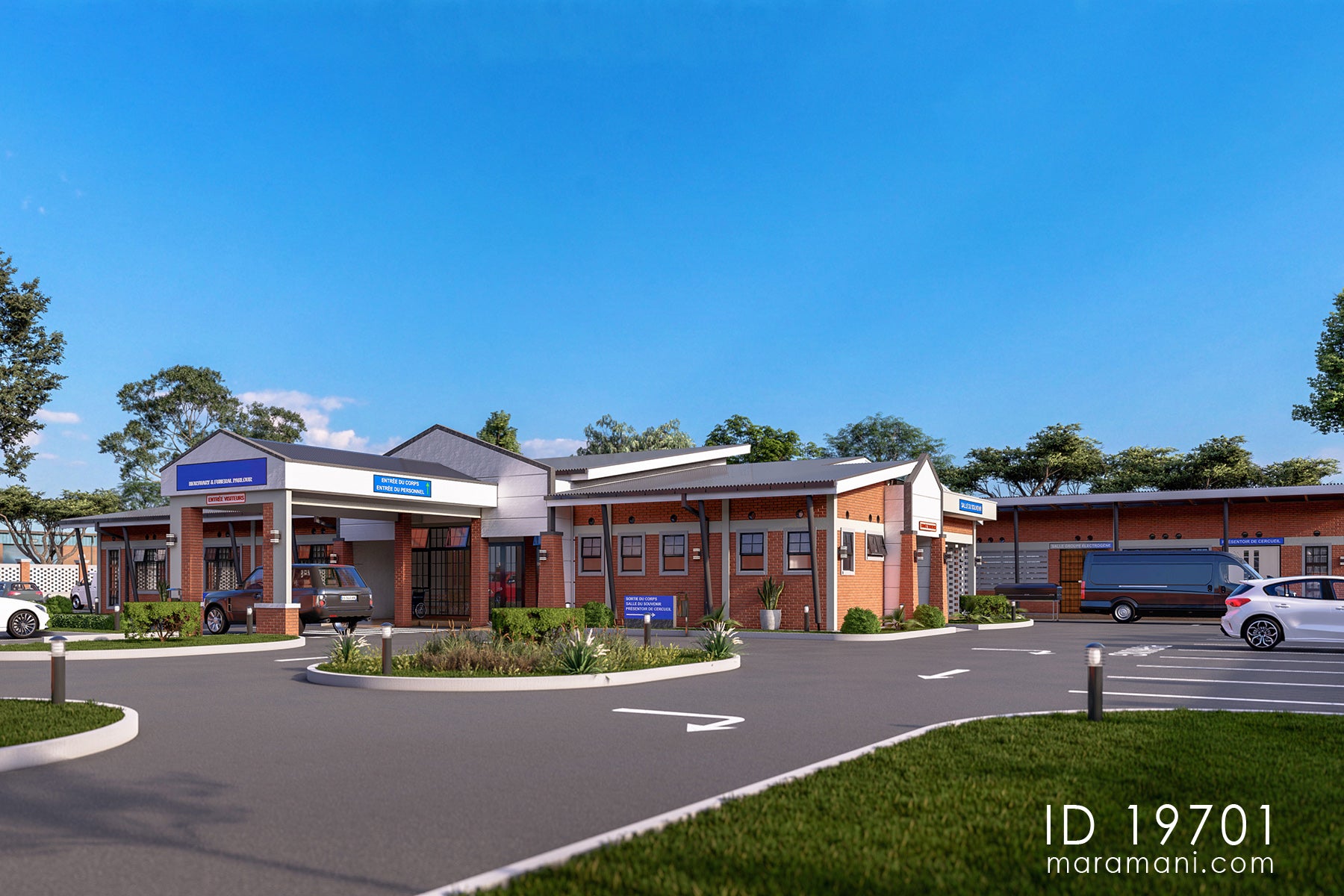

In the heart of the African community, a graceful and culturally rich funeral home design stands tall. It embraces the essence of tradition and modern designs, creating a peaceful space for grieving families. Constructed with burnt bricks and adorned with screen wall facades, this solemn building exudes an air of respect and appreciation. The metal roofing sheets, large windows, and generous roof overhangs provide practical functionality. Additionally, they create a calming ambience that invites solace and comfort all users.

The funeral home complex has two distinguished buildings, each designed to meet the diverse needs of bereaved families. The main funeral and mortuary building house key rooms, including a dedicated body entrance area and an autopsy room. It also consists of offices, to provide a well-organized space for funeral arrangements and office tasks. Additionally, a secure body holding area and staff rooms, ensure a comfortable environment for grieving families. Visitors find solace in the welcoming area for paying respects while body viewing and boxing rooms offer warm farewells. Thoughtful necessary spaces like public toilets and a hall of remembrance further support grieving families during their time of need. The hearse bay for this funeral home stands as a final exiting point, offering a solemn farewell.

In the casket parlor building, families find a peaceful space to honor their loved ones. The casket display area showcases an array of choices, each crafted with care and high regard to culture. Adjacent to it, the generator room ensures constant support during functions and services.

With proper planning and careful design, this funeral home design captures the essence of African customs. It provides a comfortable haven for families to honor their dearly lost ones.

Plan Details

Features Drawings List

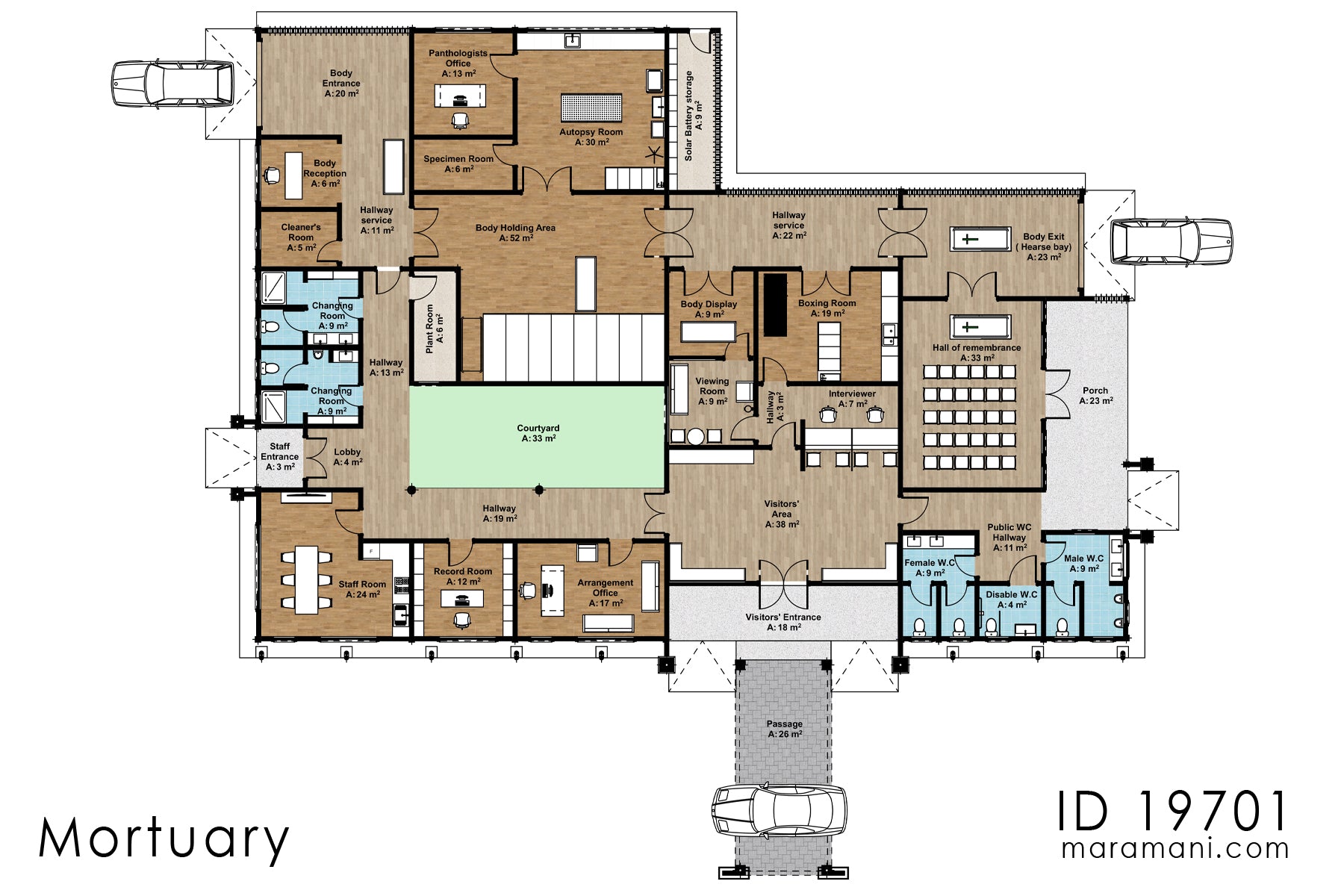

FUNERAL HOME

Stories: 1
Toilets / bath: 6
Pathologist's office: 1
Autopsy room: 1
Specimen room: 1
Body entrance: 1
Body reception: 1
Changing room: 2
Plant room: 1
Body holding area: 1
Solar battery storage: 1
Body display: 1
Boxing room: 1
Viewing room: 1
Interviewer: 1
Visitors area: 1
Body exit: 1
Hall of remembrance: 1
Staff room: 1
Record room: 1
Arrangement room: 1
Staff entrance: 1
Visitors entrance: 1
Porch: 1
Courtyard: 1

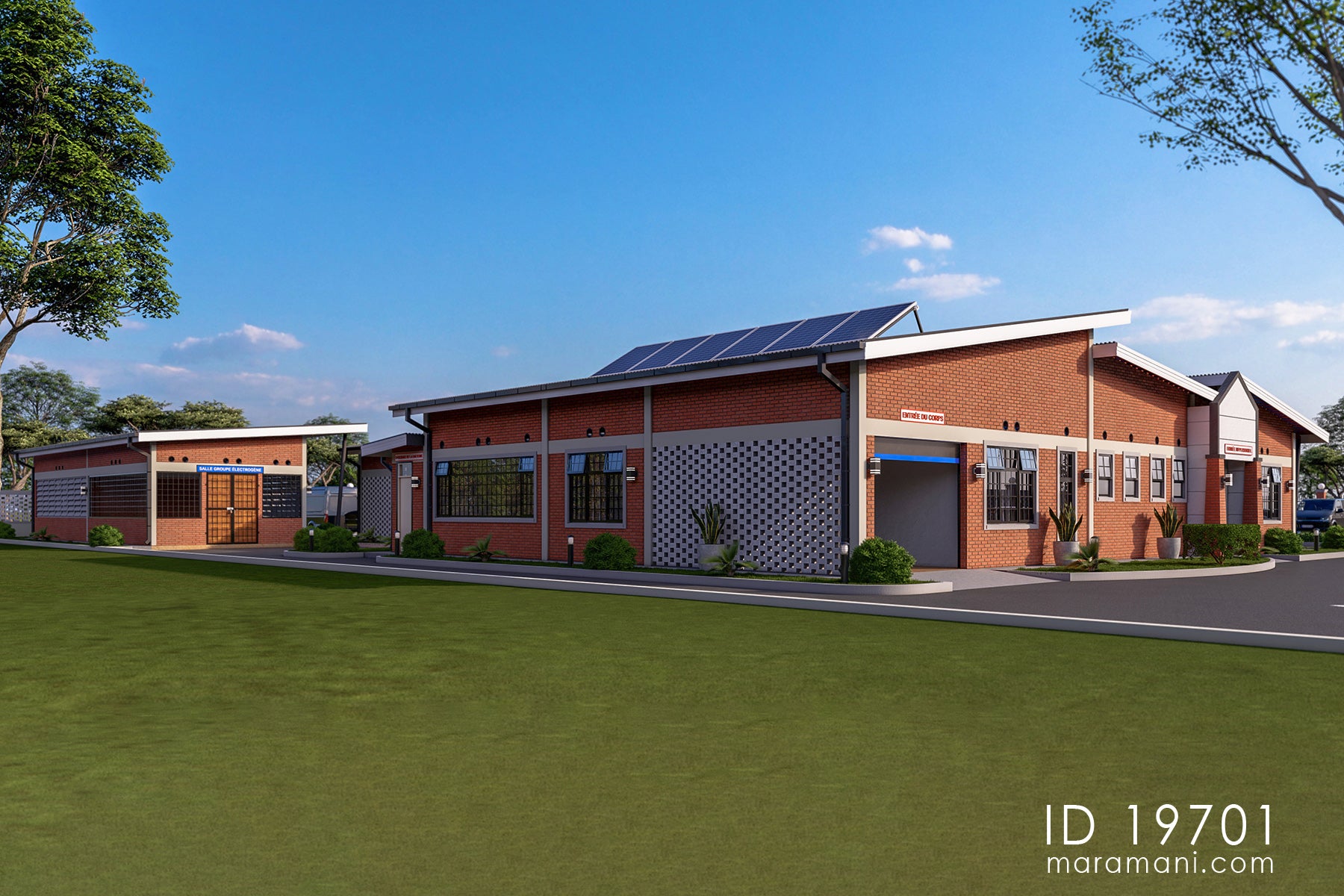

CASKET & GENSET HOUSE

Stories: 1
Genset room: 1 (Generator)
Casket display room: 1
Verandah: 1

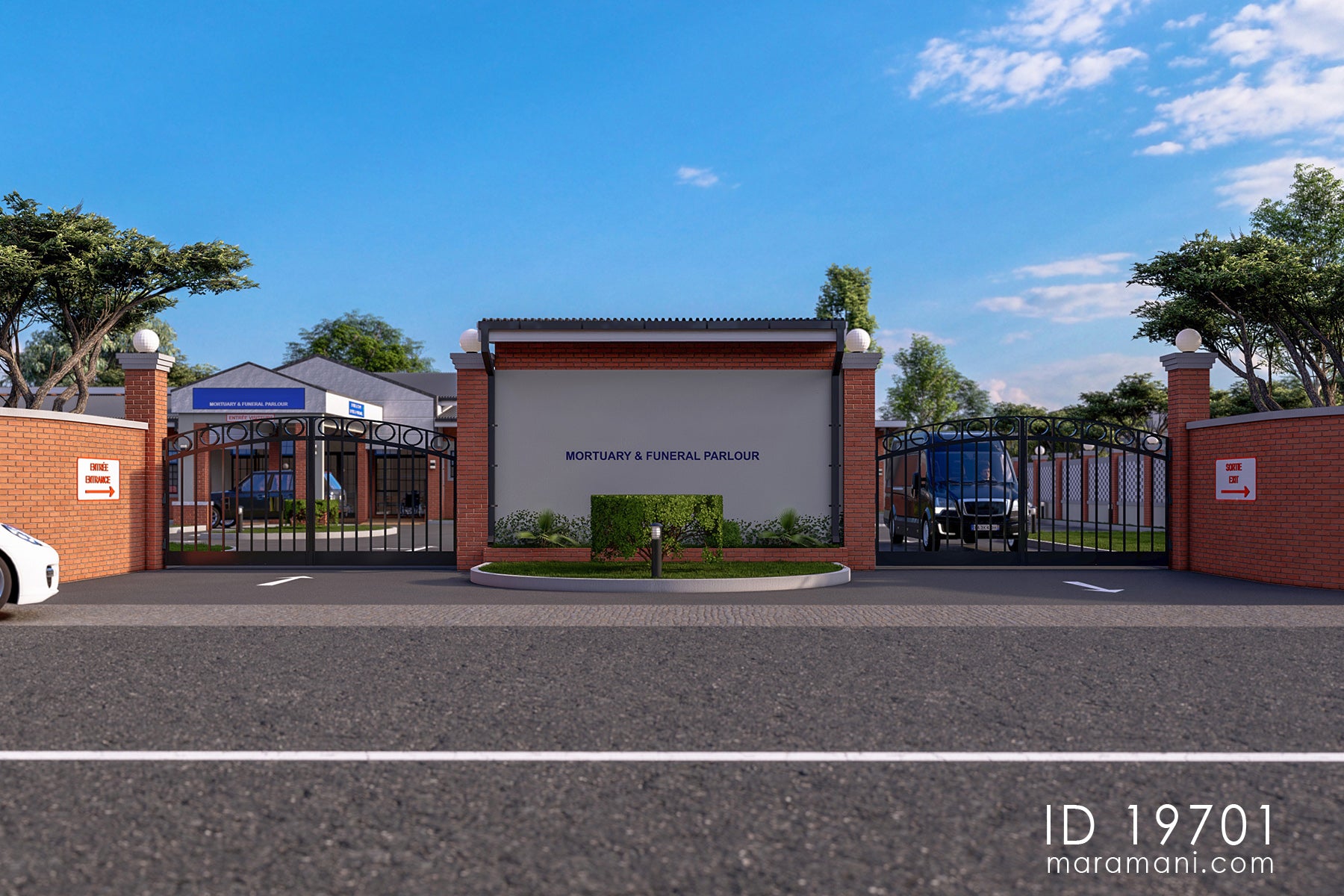

GATE HOUSE

Stories: 1

Toilet/Bath: 1
Gate room: 1
Verandah: 1

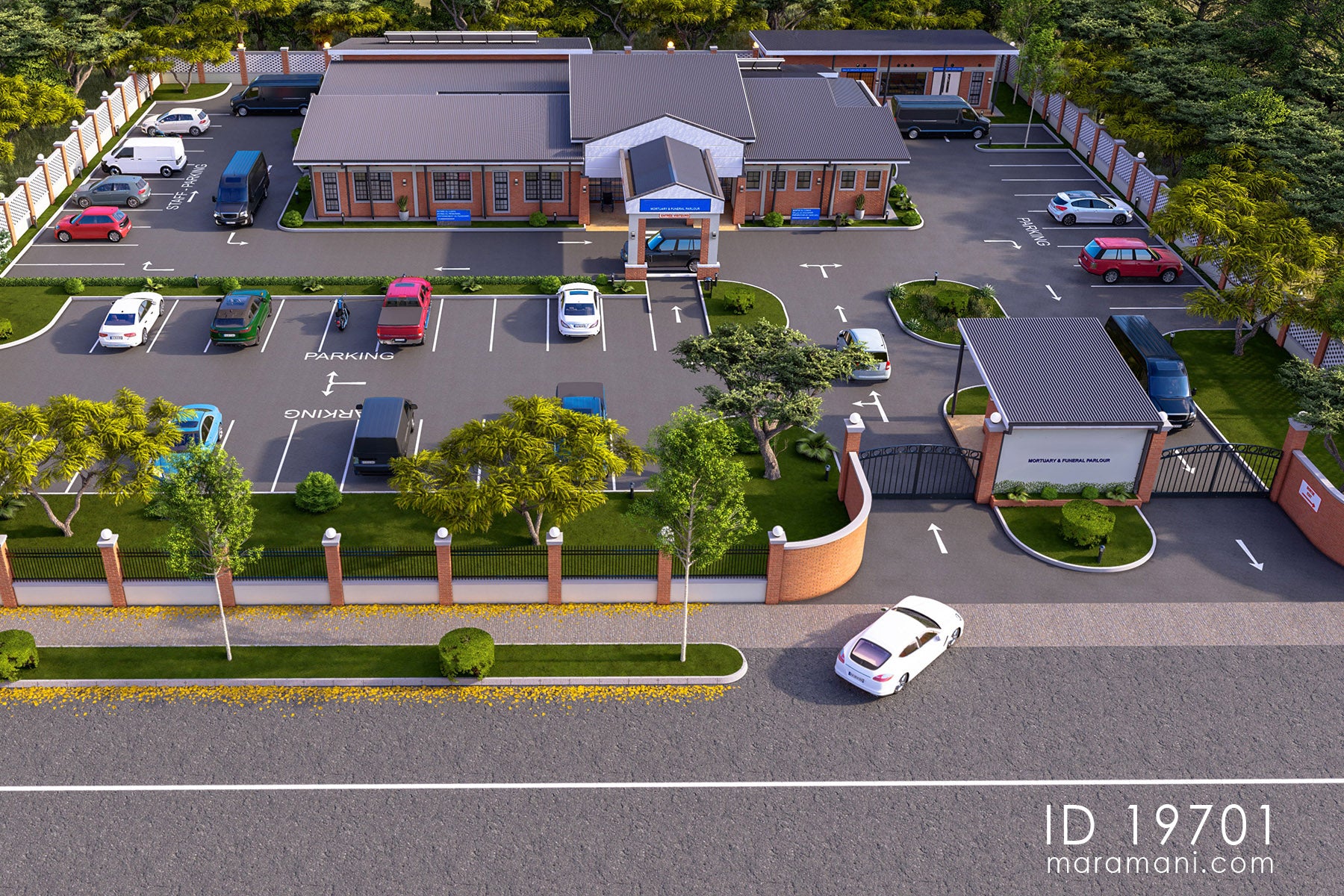

Site Plan
Foundation Plan
Floor Plans
Roof Plan
Sections
Construction Details
Elevations
Doors and windows schedule
Floor finishes and furniture layout plan
Schematic electrical layout plan
Schematic clean water layout plan
Schematic Foul water layout plan
Septic tank and Soakaway pit

*Drawings delivered in PDF and DWG Format
